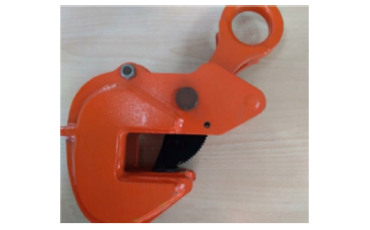

Horizontal Plate Lifting Clamp with Safety Lock


Horizontal Plate Lifting Clamp with Safety Lock
Plate Lifting Clamp

Double arm with teeth plate lifting clamp is used for heavy plates lifting. Horizontal clamps are made with medium carbon steel of high strength. Extra hard material is used wherever required. Individual clamp is proof tested with 2 times the load of working load limit. Maintenance replacements parts are available.

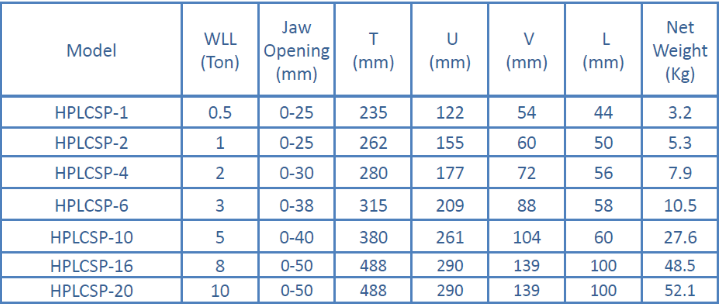

  • Available in capacities of 0.5, 1, 2, 3, 5,8 & 10 metric tons.
  • With safety system, can be locked.
  • Individual clamp is proof tested with 2 times the load of working load limit.
  • Used for girders in pair, for handling sheets and bundle of sheets, sling with three clamps or more.

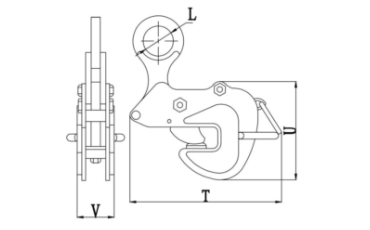

Plate Lifting Clamp horizontal
