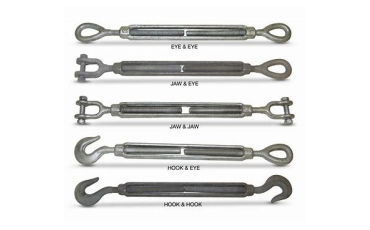

Turn Buckles

Turn Buckles

Turn Buckles

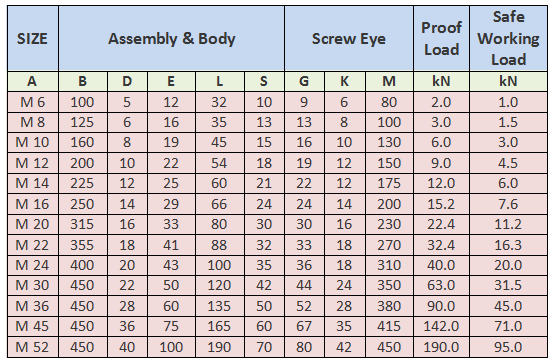

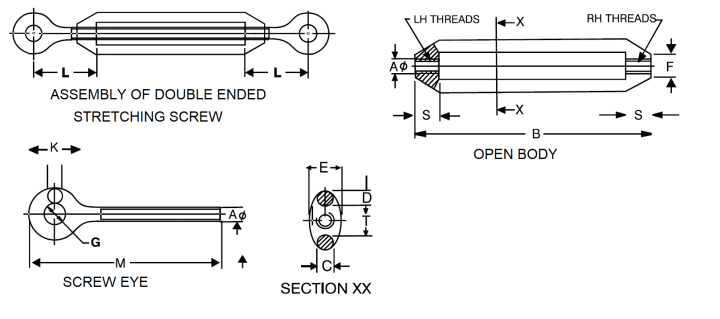

Turn Buckles IS: 3121-1981

Nominal Size	Assembly & Body								Proof Load Kn	S.W.L. Kn
A	B	C	D	E	F	L	S	T
M6	100	6	5	12	9	32	10	100	2.0	1.0
M8	125	8	6	16	13	35	13	13	3.0	1.5
M10	160	10	8	19	15	45	15	15	6.0	3.0
M12	200	12	10	22	19	54	18	18	9.0	4.5
M14	225	15	12	25	22	60	21	22	12.0	6.0
M16	250	18	14	29	24	66	24	24	15.2	7.6
M20	315	20	16	32	30	80	30	30	22.4	11.4
M22	355	22	18	41	33	88	32	32	32.4	16.2
M24	400	24	20	43	36	100	35	35	40.0	20.0
M30	450	30	22	50	45	120	42	42	63.0	31.5
M36	450	36	28	60	55	135	50	50	90.0	45.0
M45	450	40	36	75	58	165	60	60	142.0	71.0
M52	450	45	40	100	75	190	70	70	190.0	95.0

Swivel Eye, Long Screw Eye

Nominal Size	Screw Eye Dimensions							Proof Load Kn	S.W.L. Kn
A	G	K	M	M1	M2	U	V
M6	9	6	80	105	50	9	6	2.0	1.0
M8	13	8	100	140	75	11	8	3.0	1.5
M10	16	10	130	180	90	13	10	6.0	3.0
M12	19	12	150	220	90	17	13	9.0	4.5
M14	22	12	175	250	105	19	15	12.0	6.0
M16	24	14	200	275	115	22	16	15.2	7.6
M20	30	16	230	325	135	26	20	22.4	11.4
M22	33	18	270	390	155	30	22	32.4	16.2
M24	36	18	270	435	175	34	24	40.0	20.0
M30	44	24	350	500	210	40	30	63.0	31.5
M36	52	28	380	510	250	49	35	90.0	45.0
M45	67	35	415	535	300	58	45	142.0	71.0
M52	80	42	450	535	340	65	52	190.0	95.0

Eye Hooks

Eye Hooks, Eye Hook With Latch, Shank Hook

Eye Hooks, Self Locking Eye
