Double Part Wire Rope Slings

Double Part Wire Rope Slings

Double Part Wire Rope Slings

Double Part Wire Rope Slings

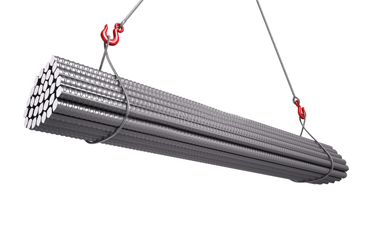

Vertical hitches are made directly from the crane hook to the load. Full rated capacity of the sling may be used but never exceeded. A tagline should be attached to prevent rotation which can damage the sling. A sling with a hand-tucked splice can unlay and fail if the sling is allowed to rotate. Choker hitches reduce lifting capability of a sling, since this method of rigging affects the ability of the wire rope components to adjust during the lift, places angular loading on the body of the sling, and creates a small diameter bend in the body at the choke point. Basket hitches distribute a load equally between the two legs of a sling. Rated capacities are influenced by sling angles

Max. Safe Working Load in Kg for Single Part
Wire Rope Slings

Min. Rope Size

Vertical

Basket Choker
3 mm 70 140 50
4 mm 130 260 100
5 mm 200 400 150
6 mm 250 500 190
8 mm 550 1100 410
9 mm 670 1340 500
10 mm 800 1600 600
11 mm 1000 2000 750
12 mm 1200 2400 900
13 mm 1400 2800 1050
14 mm 1750 3500 1300
16 mm 2000 4000 1500
18 mm 2500 5000 1875
19 mm 3000 6000 2250
20 mm 3300 6600 2475
22 mm 4000 8000 3000
24 mm 4600 9200 3450
25 mm 5000 10000 3750
29 mm 6500 13000 4875
32 mm 8000 16000 6000
35 mm 9200 18400 6900
36 mm 10400 20800 7800
38 mm 12000 24000 9000
40 mm 12700 25400 9525
44 mm 16700 33400 12525
48 mm 20000 40000 15000
52 mm 23000 46000 17250
